Card cssStyle does not work #3439

Open Newton opened this topic on on Apr 29 - 5 comments

Newton commented on Apr 29

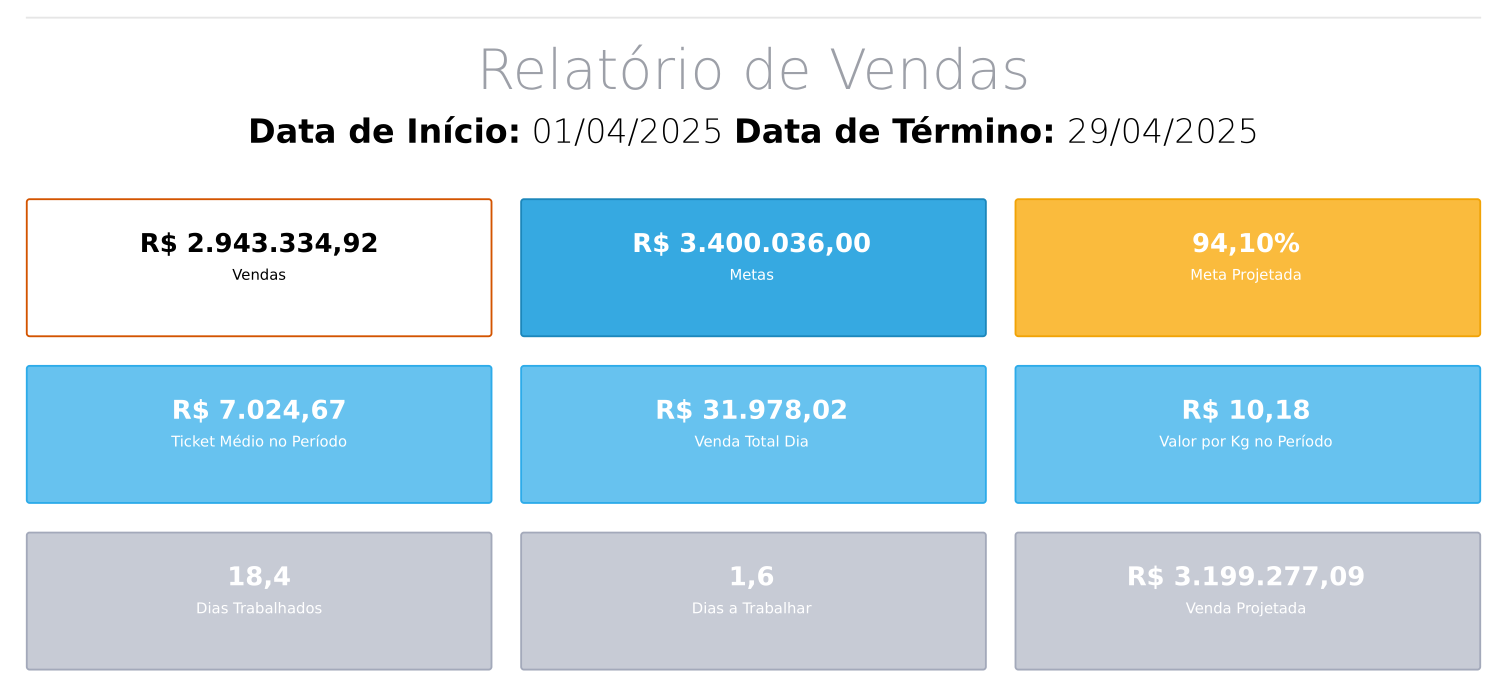

I need to customize the Cards of a report using cssStyle, but when I insert this property, only border-color receives the customization inserted.

In the example below, the colors inserted in the card background, value color and title color did not work.

<?php
use koolreport\widgets\koolphp\Card;
?>
<html lang="pt-BR">
<head>
  <title>Relatório</title>
  <meta charset="UTF-8">
  <style>
    * {
        color-adjust: exact !important;
      -webkit-print-color-adjust: exact !important;
    }

    @media print {
      body {
        -webkit-print-color-adjust: exact !important;
      }
    }
    .report-content{
        margin-bottom: 50px;
    }
  </style>
</head>
<body style="margin:0.5cm 1cm 0.5cm 1cm">

<div class="page-header" style="text-align:right"><i>Nacional Telha</i></div>
<div class="page-footer" style="text-align:right">Pág. {pageNum}</div>
<hr/>
<div class="report-content">
  <div class="text-center">
    <h1 class="display-1 text-muted">Relatório de Vendas</h1>
    <h3 class="display-4"> <b>Data de Início:</b> <?php echo $this->dataStore('venda_projetada')[0]['DataInicio']->format('d/m/Y') ?> <b>Data de Término: </b>
      <?php echo now()->format('d/m/Y') ?></h3>
  </div>
</div>
<div class="row">
    <div class="col-md-4">
      <?php
      $vendas = $this->dataStore('venda_total_por_empresa_data')->sum('ValorTelhas');
      $metas = $this->dataStore('metas_por_vendedor_mes')->sum('metavalor');
      $vendaProjetada = $this->dataStore('venda_projetada')->sum('ProjecaoMensal');
      $metaAtingida = $vendas / $metas * 100;
      switch ($metaAtingida) {
        case $metaAtingida >= 100:
          $cor = 'bg-success';
          break;
        case $metaAtingida >= 80:
          $cor = 'bg-warning';
          break;
        default:
          $cor = 'bg-danger';
      }
      Card::create([
        "title"=>"Vendas",
        "value"=>$vendas,
        "format"=>[
          "value"=>function($value){
            return 'R$ ' . number_format($value, 2, ',', '.');
          },
        ],
        "cssStyle"=>[
          "negative"=>"color:#ddd",
          "positive"=>"color:#0f0",
          "indicator"=>"font-size:16px",
          "card"=>"border-color:#d35400;background:#bb8fce;",
          "value"=>"color:blue",
          "title"=>"color:green",
        ],
      ]);
      ?>
    </div>
    <div class="col-md-4">
      <?php
      Card::create([
        "title"=>"Metas",
        "value"=>$metas,
        "format"=>[
          "value"=>function($value){
            return 'R$ ' . number_format($value, 2, ',', '.');
          },
        ],
        "cssClass"=>[
          "card"=>"bg-primary",
          "title"=>"text-white",
          "value"=>"text-white",
        ]
      ]);
      ?>
    </div>
    <div class="col-md-4">
      <?php
      Card::create([
        "title"=>"Meta Projetada",
        "value"=>$vendaProjetada / $metas * 100,
        "format"=>[
          "value"=>function($value){
            return number_format($value, 2, ',', '.') . '%';
          },
        ],
        "cssClass"=>[
          "card"=>$cor,
          "title"=>"text-white",
          "value"=>"text-white",
        ]
      ]);
      ?>
    </div>
</div>
</body>
</html>

Sebastian Morales commented 5 days ago

Pls test your Card cssStyle with our example to see if it works in standalone page:

https://www.koolreport.com/examples/reports/koolphp_card/card/

Then inspect the card element in your page (right mouse click => Inspect element) to see if the css style rules are there as you intended and if there is any other rule that overrides them?

Newton commented 4 days ago

Hello Sebastian I ran the test and found that the problem is related to the PDF export. When the report is rendered in a view, the cssStyle works correctly, but when the export to PDF is performed, the cssStyle does not work correctly. Below I have put a simple test demonstrating the problem. Can you help me solve this please?

class TestesController extends Controller
{
    public function teste()
  {

    $arquivo = Storage::disk('tenant')->path("media/pdfs/myreport.pdf");

    $report = new MyReport();
//    $report->run()->render();
    $report->run()
      ->export('MyReport')
      ->settings([
        'phantomjs' => public_path() . '/js/phantomjs',
        'pageWaiting' => 'load',
        'useLocalTempFolder' =>true,
      ])
      ->pdf([
        'displayHeaderFooter' => true,
        'format' => 'A4',
        'orientation' => 'landscape'
      ])
      ->saveAs($arquivo);
  }
}
<?php

namespace Galileo\Custom\Itg\Reports;

use koolreport\amazing\Theme;
use koolreport\clients\Bootstrap;
use koolreport\export\Exportable;
use koolreport\laravel\Friendship;

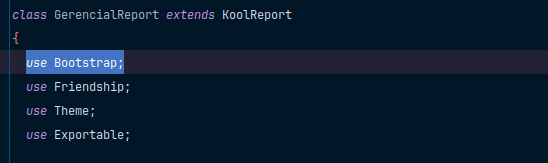

class MyReport extends \koolreport\KoolReport
{
  use Bootstrap;
  use Friendship;
  use Theme;
  use Exportable;
  public function settings()
  {
    return [
      "dataSources" => [
        'vendas' => [
          'class' => 'koolreport\datasources\ArrayDataSource',
          'dataformat' => 'table',
          'data' => [
            ['nome'=>'João', 'valor'=>100],
          ],
        ],
      ]
    ];
  }

  protected function setup()
  {
    $this->src('vendas')
      ->pipe($this->dataStore('vendas'));
  }
}
<?php
use \koolreport\widgets\koolphp\Card;
?>
<div class="report-content">
  <div class="text-center" style="margin-top:30px;">
    <h3>Get value with SQL Query</h3>
    <p class="lead">
      The value of card is able to receive value from SQL
    </p>
  </div>

  <div class="row">
    <div class="col-md-4 offset-md-4">
      <?php
      \koolreport\widgets\koolphp\Card::create([
        "title"=>"Vendas",
        "value"=>$this->dataStore('vendas')->sum('valor'),
        "format"=>[
          "value"=>function($value){
            return 'R$ ' . number_format($value, 2, ',', '.');
          },
        ],
        "cssStyle"=>[
          "negative"=>"color:#ddd",
          "positive"=>"color:#0f0",
          "indicator"=>"font-size:16px",
          "card"=>"border-color:#28b463;background:#6c3483;",
          "value"=>"color:#95a5a6",
          "title"=>"color:#95a5a6",
        ],
      ]);
      ?>
    </div>
  </div>
  <div class="row">
    <div class="col-md-4 offset-md-4">
      <?php
      \koolreport\widgets\koolphp\Card::create([
        "title"=>"Vendas",
        "value"=>50000,
        "format"=>[
          "value"=>function($value){
            return 'R$ ' . number_format($value, 2, ',', '.');
          },
        ],
        "cssClass"=>[
          "card"=>"bg-primary",
          "title"=>"text-white",
          "value"=>"text-white",
        ]
      ]);
      ?>
    </div>
  </div>

</div>

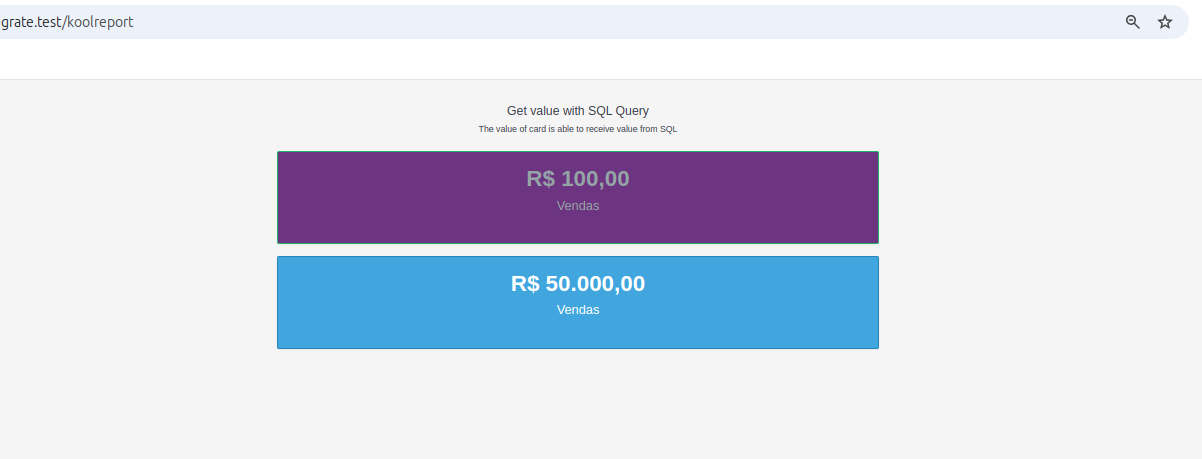

When rendered in the browser

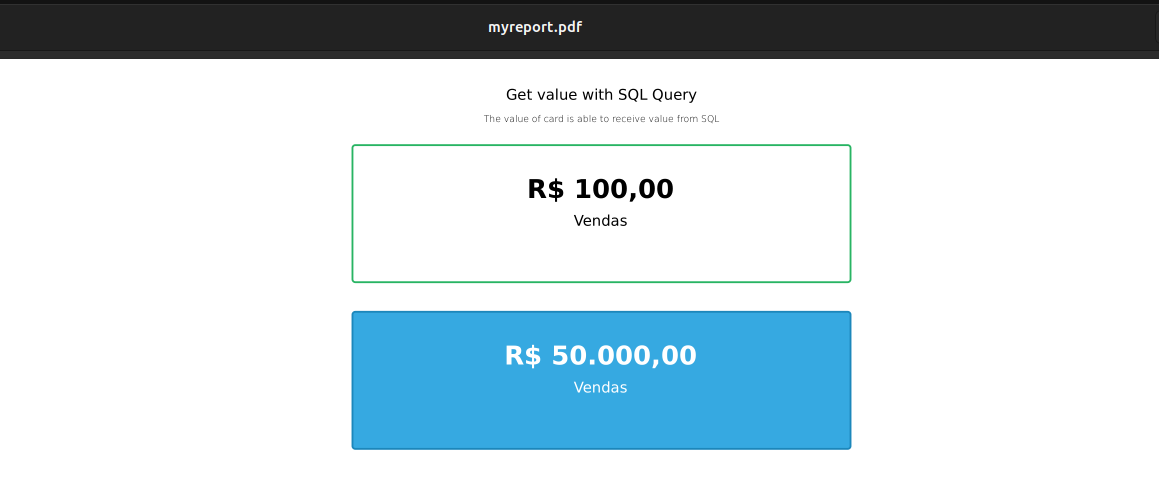

When exported to pdf

Sebastian Morales commented 2 days ago

For Card css rules to work in PDF rendering, pls add the following in page style to your report PDF view file:

<style>
    @media print {
        .card-value {
            color: blue !important;
        }
        .card-title {
            color: green !important;
        }
        .card {
            background-color: #bb8fce !important;
            border-color:#d35400 !important;
        }
    }
</style>

If you need rules for other elements just inspect it in your web page for find out their css classes and use them as selectors in this style @media print.

Newton commented 1 day ago

Hello Sebastian,

Thank you for the guidance. I was able to print with the desired formatting, but wouldn't it be correct for the cssStyle parameter to work for printing? I ask this because we will need to customize several parts of a report and not being able to use the cssStyle parameter ends up greatly affecting our productivity. Is the fact that this parameter does not work a bug in Koolreport? Is it possible to make adjustments so that this will work?

Sebastian Morales commented 22 hours ago

This is a limitation of the PDF engine Export uses. To work around in your PDF view you could name your Card widget like this and use that unique name for CSS selector:

<style>
    @media print {
        #MyCard .card-value { /* add this id selector so that this rule only works on this Card */
            color: blue !important;
        }
        ...
    }
</style>
<?php
    \koolreport\widgets\koolphp\Card::create(array(
        "name" => "MyCard",
        ...
    ));
